Product Details
Place of Origin: Anhui, China
Brand Name: X
Model Number: QXTEI-041
Payment & Shipping Terms
Minimum Order Quantity: 10 pieces
Price: $1.50/pieces 10-99 pieces
Packaging Details: Anti-static carton and can be customized
Supply Ability: 50000 Piece/Pieces per Month
Type: |
EI Transformer, EI Type Transformator |
D/C: |
Customized |
Supplier Type: |
Original Manufacturing |
Application: |
Home Appliance, Power, Medical, Sorting |
Brand: |
X |
Package Type: |
Customized |
Operating Temperature: |
-30-110℃ |
Tolerance: |
±5% |
Package / Case: |
Customized |
Product Name: |

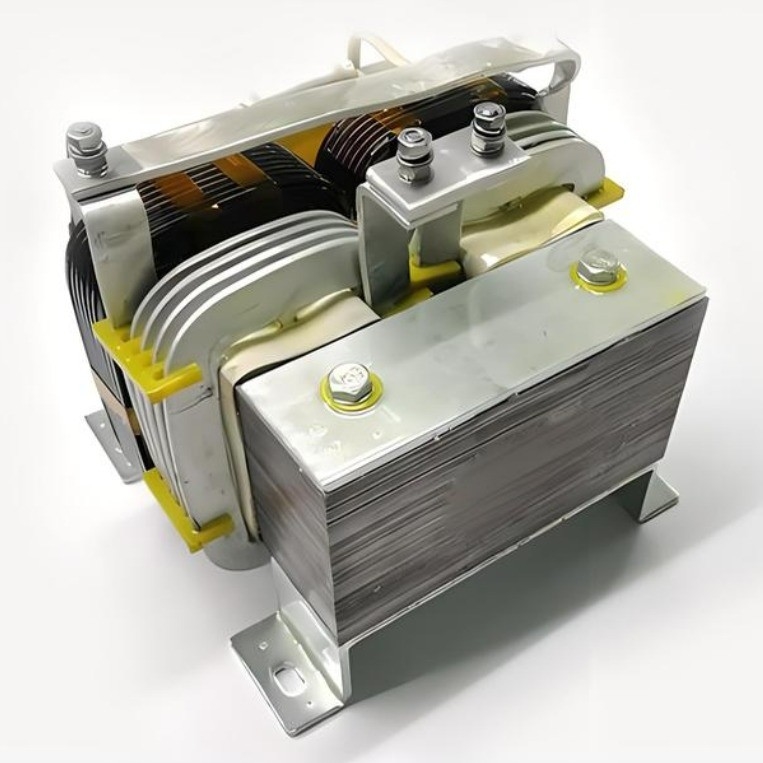

EI Single-phase Transformer For Battery Charging |
Output Voltage: |
24/36/48/120/220/230/380V And Custom |
Cooling Method: |
Dip Varnish |
Material: |
Copper Wire |
WINDINGS: |
Copper Foil |
Frequency: |
Customized |
Bobbin Material: |
Phenolic |
Storage Humidity: |
95% |
Phase: |
Single |
Transformer Efficiency: |
95% |
Type: |
EI Transformer, EI Type Transformator |
D/C: |
Customized |
Supplier Type: |
Original Manufacturing |
Application: |
Home Appliance, Power, Medical, Sorting |
Brand: |
X |
Package Type: |
Customized |
Operating Temperature: |
-30-110℃ |
Tolerance: |
±5% |
Package / Case: |
Customized |
Product Name: |
EI Single-phase Transformer For Battery Charging |
Output Voltage: |
24/36/48/120/220/230/380V And Custom |
Cooling Method: |
Dip Varnish |
Material: |
Copper Wire |
WINDINGS: |
Copper Foil |
Frequency: |
Customized |
Bobbin Material: |
Phenolic |
Storage Humidity: |
95% |
Phase: |
Single |
Transformer Efficiency: |
95% |
Current Ei Series Power Control Transformer EI Single-phase Transformer For Battery Charging
| Model | Phase | Power(W) | L(mm) | D(mm) | H(mm) | φ |
| DC24V/30A | 1 Phase | 720 | 30 | 69 | 0.42 | 10*20 |
| DC24V/40A | 1 Phase | 960 | 37 | 78 | 0.65 | 10*20 |
| DC24V/50A | 1 Phase | 1200 | 43 | 78 | 0.8 | 10*20 |
| DC24V/60A | 1 Phase | 1440 | 44 | 95 | 1.27 | 10*20 |
| DC48V/50A | 3 Phase | 2400 | 50 | 96 | 1.56 | 10*20 |
| DC48V/60A | 3 Phase | 2880 | 55 | 106 | 2 | 10*20 |
| DC48V/70A | 3 Phase | 3360 | 56 | 116 | 2.74 | 10*20 |
| DC48V/80A | 3 Phase | 3840 | 68 | 120 | 3.4 | 10*20 |
| DC48V/100A | 3 Phase | 4800 | 75 | 126 | 4.02 | 10*20 |
| DC72V/60A | 3 Phase | 4320 | 75 | 136 | 5.05 | 10*20 |
| DC72V/70A | 3 Phase | 5040 | 75 | 143 | 5.6 | 10*20 |
| DC72V/80A | 3 Phase | 5760 | 82 | 143 | 6.2 | 10*20 |
| DC70V/100A | 3 Phase | 7000 | 82 | 155 | 7.4 | 10*20 |
| DC80V/60A | 3 Phase | 4800 | 83 | 176 | 9.5 | 10*20 |
| DC80V/70A | 3 Phase | 5600 | 90 | 200 | 12.1 | 10*20 |
| DC80V/80A | 3 Phase | 6400 | 100 | 215 | 16.5 | 10*20 |
| DC80V/100A | 3 Phase | 8000 | 115 | 230 | 24.02 | 10*20 |
Hefei Qixing Electric Appliance Co., Ltd is committed to research and development production and sales of various types of transformers, reactors, inductance coil products professional company. Advanced design methods, strict manufacturing processes, precise testing equipment, and a complete management system ensure that the company's products can meet the needs of different users. The company's products include EI-type, ring-type, R-type, CD-type, etc.. Power transformers, filter reactors, input/output reactors, and various filter inductors. Products are widely used in various types of home appliances, power equipment reactive power compensation, frequency converter and other fields.
Q1. Who are we?
We are Hefei QIXING Electric Appliance Co., Ltd, based in Hefei city, AnHuiProvince, China, starting from 1997. There are total about 51-100 people in our factory.
Q2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
Q3.What can you buy from us?
transformer, inductor, current transformer, coil, power supply, wiring harness, ozone generators...
Q4. What should be provided to make custom transformer ?
Supply drawing is best, or tells us the size, inductance, resistance and etc.
Q5. What is payment term ?
T/T , Western Union , PayPal or negotiation.
Q6. Does your company accept OEM production?
Yes, of course. QIXING is still dedicated to providing global customers one-stop superior quality products and solutions, becoming an excellent enterprise in transformer, reactor and wiring harness industry.
